24-inch Dishwasher Mounting Kit — Secure Level Installation
Why mounting hardware matters for dishwasher performance
Selecting the correct mounting kit can materially affect dishwasher stability, noise transmission, leak risk, and long-term cabinet integrity. Households with stone counters, open-plan kitchens, or frequent dishwasher use prioritize a secure, level installation to keep spray patterns aligned, maintain door seal compression, and prevent movement that accelerates wear on internal components. For multi-person households and small apartments alike, the mounting method determines whether a 24-inch built-in dishwasher performs as intended by the manufacturer. A compatible, corrosion-resistant bracket that includes alignment tooling simplifies alignment on non-drill countertops and helps protect expensive surfaces. Evaluating bracket material, attachment options, included hardware, and any leveling aid clarifies whether the kit will preserve cleaning coverage, reduce vibration-related noise, and support consistent drying and drainage outcomes in everyday use.
Quick Overview
| Feature | Details |
|---|---|
| Product type | 24-inch under-counter dishwasher mounting bracket kit |
| Compatibility | Fits Whirlpool, KitchenAid, Maytag, Jenn-Air, Estate, Roper, Admiral, Magic Chef; replaces W10426979, AP5607641, AH3632890, EA3632890, PS3632890 |
| Material & finish | 22-gauge galvanized steel, powder coated |

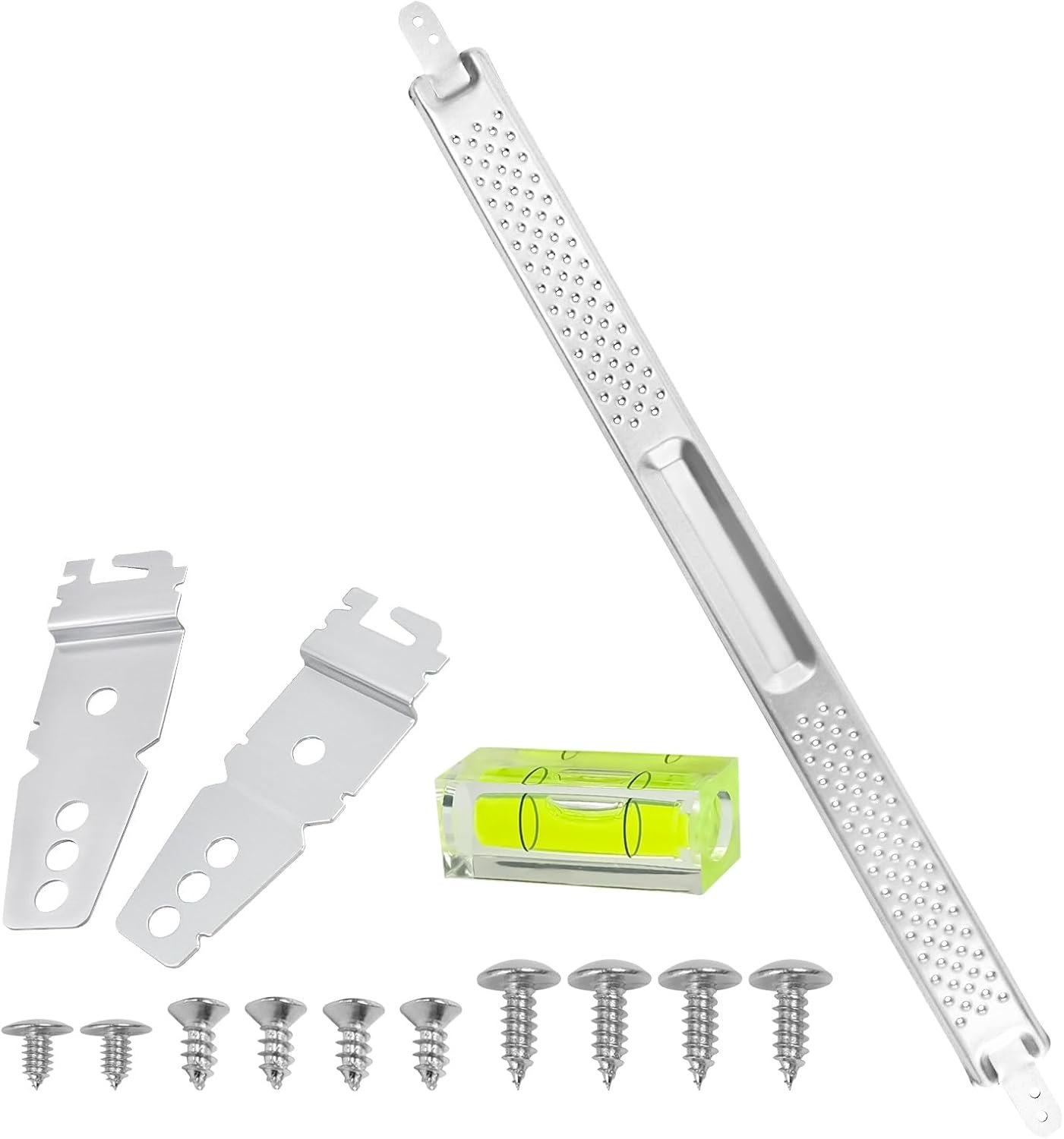

| Included components | W10426979 bracket, detachable column level, set of 8269145 mounting screws |
| Mounting method | Under-counter, non-drilling option for solid surfaces (granite, quartz, marble) |
| Dimensions & weight | 19 x 0.1 x 0.1 inches; 1.6 ounces (listed) |
| Noise level rating | Not applicable (kit affects noise via stabilization) |
| Energy efficiency certifications | Not applicable to mounting hardware |
| Warranty | 1 year |
This kit converts manufacturer mounting points into a secure under-counter attachment suitable for stone and other non-drilling countertops, with included hardware and a detachable column level to aid alignment. For households that value low vibration and stable door seals, the bracket prioritizes mechanical stability rather than altering appliance electronics or wash cycles, making it a practical addition when replacing or reinstalling a standard 24-inch built-in dishwasher.
Installation and compatibility considerations for built-in 24-inch dishwashers
The central buyer decision for a mounting kit is whether it will mate cleanly with the dishwasher model and the kitchen’s countertop material. This bracket is engineered to match common Whirlpool-family mounting locations and the listed part numbers, which simplifies compatibility checks for most 24-inch built-ins. The kit’s non-drilling concept addresses situations where direct top-mounting to stone is not an option; by clamping or bending an end tab after countertop installation, it provides an attachment path without penetrating granite or quartz. Included screws and a detachable column level allow installers to verify plumb and lateral alignment, which is essential for door sealing and spray arm geometry. Buyers should confirm dishwasher model and opening dimensions, and account for variations in cabinet face frame and toe-kick geometry before purchase.
Under-counter mounting on stone and solid surfaces
For kitchens with granite or quartz countertops, the kit’s non-drilling approach is a key design feature. Instead of requiring direct screws into the countertop, the bracket is designed to secure to cabinet structures and use a bent tab or clamp to maintain tension under the counter edge. This reduces the risk of countertop damage from drilling and distributes load across the cabinet top rather than concentrating forces on a brittle surface. The detachable column level included in the kit helps confirm the dishwasher sits plumb and true, which is important because even small tilts change how water pools, potentially affecting spray coverage and seal compression. Compatibility with protruding countertops, undermount sinks, and overhangs should be reviewed before installation.
Before-countertop vs after-countertop installation workflows
Two installation workflows are supported: attaching the bracket before the countertop is installed or retrofitting after counters are in place. Pre-countertop installation allows direct screw attachment to the cabinet top using the included hardware for a secure connection that aligns with OEM mounting points. For post-countertop installs, the bracket’s bendable tab provides a mechanical anchor without surface penetration. Each method influences the achievable alignment tolerance; pre-installation tends to produce a more rigid connection, while retrofit attachment relies on correct bending and clamping force. Buyers should weigh cabinet accessibility and countertop finish preservation when selecting the installation approach.
Vibration control and noise transmission implications
Stability at the interface between the dishwasher and the cabinet directly influences vibration transmission and perceived noise. A rigid bracket that secures the appliance to the cabinet structure reduces flex at the mounting points, which limits energy transfer from motorized components into the cabinetry. Less cabinet resonance typically reduces midrange and low-frequency noise that becomes noticeable in open-plan kitchens. The galvanized steel construction and firm attachment points promote a consistent mechanical boundary for the chassis, helping maintain consistent spray arm alignment and minimizing transient rattles caused by shifting during heavy cycles. However, the mounting kit is an element of a broader noise-control strategy and cannot replace insulated panels or active sound-dampening in inherently loud models.
How secure mounting reduces audible vibration in open-plan layouts
A well-secured dishwasher chassis has fewer degrees of freedom to vibrate, which diminishes coupled resonances between the appliance and surrounding cabinetry. By anchoring at OEM-compatible points, the bracket constrains chassis motion and reduces sympathetic vibration that would otherwise radiate through kitchen cabinets and counter surfaces. In open-plan homes where living areas share airspace with the kitchen, this reduction in structure-borne noise translates into lower perceived operating volume, especially at low frequencies. The detachable column level aids achieving a uniform plane, ensuring the door closes evenly and preventing seal irregularities that can produce air leaks and whistling during operation.
Limitations: bracket is not a substitute for acoustic insulation
While a robust bracket reduces transmitted vibration, it does not alter the internal noise generation of pumps, motors, or spray dynamics. Models with weak insulation or inherently loud mechanical designs will still produce higher airborne noise despite improved mounting. Acoustic improvements gained from a mounting kit are additive to, not a replacement for, factory sound insulation, tight internal component tolerances, and dedicated sound-damping cabinetry. For buyers prioritizing Ultra-Quiet performance in open-plan spaces, verifying the dishwasher’s published decibel rating and internal insulation remains essential in addition to choosing an appropriate mounting solution.
Structural support, materials, and long-term durability
Material choice and fabrication quality determine how a mounting bracket performs over years of thermal and mechanical cycling. The W10426979 kit uses 22-gauge galvanized steel with a powder-coated finish, which provides baseline resistance to corrosion and surface wear consistent with OEM expectations for interior cabinet hardware. Galvanization protects the steel from moisture in the under-sink environment, while powder coating adds an additional barrier against wear where metal contacts other components. Bendable tabs and screw attachment points are typical stress locations; attention to proper torque on included fasteners and avoidance of over-bending during retrofit installs will extend service life. Buyers should anticipate normal metal fatigue pathways and consider periodic inspection in high-use households.
Load-bearing expectations and OEM engineering standards
OEM replacement brackets are designed to handle the static and dynamic loads of a full 24-inch dishwasher, including door torque and cycle-induced motion. The 22-gauge specification reflects a balance between stiffness, manufacturability, and corrosion resistance; when installed to manufacturer mounting locations, the bracket distributes load across cabinet tops and frame structures. Properly seated mounting prevents chassis sag that can misalign spray arms, compromise pump coupling tolerances, and alter drainage slope. Installers should verify that cabinet tops and adjacent framing are robust and free of rot or damage, as the bracket transfers load into these elements rather than into the countertop surface itself.
Corrosion resistance, finish, and expected lifespan
Galvanized steel combined with powder coating offers a resilient surface treatment for the humid, occasionally wet environment under countertops. Zinc galvanization provides sacrificial protection against rust formation, while the powder coat resists chipping and adds an aesthetic layer. These treatments slow corrosion processes that could weaken mounting points; however, long-term exposure to concentrated water leaks or chemical cleaners can bypass surface protection. Owners should address any leaks promptly and avoid prolonged contact with acidic or abrasive agents on metal surfaces. A one-year warranty covers manufacturing defects, but visual inspection and proper installation torque are key to achieving multi-year service life.
Alignment, maintenance access, and serviceability
The inclusion of a detachable column level and a complete set of mounting screws addresses alignment and initial setup, both of which influence sealing, draining, and spray coverage. Proper alignment ensures the door gasket compresses uniformly across the perimeter, maintaining the designed barrier against water egress. It also maintains correct spray arm clearance and drain hose slope to avoid pooling. From a serviceability perspective, the bracket’s removable design facilitates appliance removal for repair without requiring countertop modification. Periodic checks of fastener torque and visual inspection of the bracket and cabinet attachment points help identify any loosening before it affects dishwasher operation or leads to rattles and misalignment.
How alignment affects leak risk and cleaning coverage
A dishwasher that is out of level can change wash distribution by allowing water to pool in low areas of the spray pattern or by shifting the spray arm’s path. Uniform compression of the door gasket depends on even vertical and lateral alignment; when the gasket is unevenly compressed, micro-channels can form and permit slow leaks that may go unnoticed until damage occurs. By enabling precise leveling at installation, the included column level helps maintain the intended geometry of the wash chamber, preserving spray arm trajectories and drainage slope—factors that support consistent cleaning results and reduce the chance of seal failure over time.
Accessibility for repair and future removal
Removable, non-permanent mounting that secures the appliance to cabinet framing simplifies future service access. Because the kit supports both pre-countertop and retrofit installations, it accommodates scenarios where the dishwasher must be pulled forward for pump, motor, or hose repairs without disturbing the countertop finish. The ability to unfasten included screws and detach the bracket preserves cabinet and countertop integrity compared with permanent adhesive or invasive anchoring methods. Prospective buyers should document screw locations and retain hardware to facilitate reinstallation after maintenance.
Household suitability: who benefits and who should avoid this kit
Buyer decision-making depends on kitchen construction, household noise sensitivity, and whether the countertop material prohibits drilling. This kit is well suited to owners of 24-inch built-in dishwashers who have stone countertops, seek to reduce vibration in open-plan homes, or need a replacement that matches OEM part numbers. It appeals to households prioritizing stability, even door sealing, and easier service removal. Conversely, narrow 18-inch dishwashers and custom cabinet solutions with nonstandard mounting geometries are incompatible. Buyers with high-performance noise requirements should pair a secure mounting kit with a dishwasher model whose base noise rating meets expectations.
Compatibility checklist and red flags to confirm before purchase
Confirm the dishwasher’s exact model and whether the OEM part number or mounting hole pattern corresponds to the listed replacements (W10426979, AP5607641, AH3632890, EA3632890, PS3632890). Measure cabinet top thickness, countertop overhang, and any obstructions such as sink mounts or reinforcement rails that might interfere with tab bending or screw access. The kit is not designed for 18-inch narrow units; ensure a 24-inch built-in profile. If cabinet framing is weak, plan for reinforcement so the bracket transfers loads to structurally sound members rather than unsupported sheathing.
Household scenarios where the kit delivers the most value
This mounting solution is particularly valuable in households with stone or composite countertops where drilling is undesirable, in open-plan layouts where reduced vibration improves perceived noise levels, and in homes that anticipate future service access. For families who run the dishwasher multiple times per day, the bracket helps maintain door seal geometry and limit the potential for cycle-induced loosening over time. In units where mounting hardware has corroded or been lost during previous service, a complete kit with hardware and a leveling aid simplifies reinstallation to OEM-equivalent standards.
Pros & Cons
Pros
- OEM compatibility with multiple Whirlpool-family models and listed part numbers. The cross-referenced replacements reduce uncertainty about fit for many 24-inch built-in dishwashers and simplify part selection during repair or replacement.
- Includes a detachable column level for alignment. Built-in leveling tooling helps achieve uniform gasket compression and proper spray-arm clearance, which supports consistent cleaning coverage and reduces leak risk.
- Non-drilling option for stone and quartz countertops. The retrofit bending tab provides an attachment method that avoids penetrating fragile or expensive countertop materials, protecting finishes while allowing secure anchoring.
- 22-gauge galvanized steel with powder coating. This combination offers baseline corrosion resistance in a moisture-prone under-counter environment and aligns with OEM material choices for mounting hardware.
- Complete hardware package included. The kit supplies the mounting screws needed for typical cabinet tops, removing the need to source fasteners separately and streamlining installation workflows.
- Supports serviceability and removal. A removable bracket design eases appliance pull-out for maintenance without requiring countertop modification, preserving both cabinetry and counters.
- Dual installation workflows (before and after countertop). Flexibility in mounting approach accommodates new builds and retrofit situations, reducing coordination challenges between countertop and appliance installation.
Cons
- No direct noise rating or acoustic performance guarantee. While the bracket reduces vibration transmission, it does not change the dishwasher’s internal noise characteristics; users seeking ultra-low noise should prioritize appliance selection first.
- Not suitable for 18-inch narrow dishwashers. Buyers must confirm a 24-inch built-in profile; incompatible widths will not fit and may void fitment expectations.
- Limited warranty period. A one-year warranty covers manufacturing defects but does not guarantee long-term corrosion resistance under atypical exposure; routine inspection is recommended for high-use households.
- Retrofit bending tab requires careful handling. Post-countertop installations rely on correct tab bending and clamping force; improper bending can reduce clamping effectiveness or damage the bracket finish.
Final Verdict: Who this mounting kit is best for (and who should skip it)
The W10426979 24-inch mounting bracket kit is a practical, specification-driven choice for owners of 24-inch built-in dishwashers that match the listed Whirlpool-family part numbers and who need a secure under-counter attachment without drilling into stone or composite countertops. Its galvanized steel construction, included hardware, and detachable leveling aid target buyers who prioritize mechanical stability, consistent door sealing, and reduced vibration transmission—factors that indirectly help preserve cleaning coverage and minimize noise in open-plan kitchens. The kit also benefits households that anticipate periodic service removal, as it provides a removable, OEM-aligned mounting solution.
This kit is not a substitute for selecting a low-noise appliance or addressing cabinetry insulation concerns; buyers seeking ultra-quiet operation should pair this hardware with a dishwasher that has a low published decibel rating. It is also unsuitable for 18-inch narrow units and for kitchen installations with atypical cabinet geometry or insufficient structural framing. Overall, for standard 24-inch built-ins installed beneath stone countertops, the kit offers a cost-effective way to restore OEM-level mounting, improve stability, and support consistent dishwasher performance in family kitchens.
Frequently Asked Questions (FAQs)
Will this mounting kit fit any 24-inch dishwasher?
The kit is designed for standard 24-inch built-in dishwashers that use the Whirlpool-family mounting pattern and the listed replacement part numbers. Buyers should verify the dishwasher’s model number and check that the OEM mounting hole pattern or part number aligns with W10426979, AP5607641, AH3632890, EA3632890, or PS3632890. The kit is not compatible with 18-inch narrow units or nonstandard cabinet geometries.
Can the bracket be used without drilling into granite or quartz countertops?
Yes. The kit includes a retrofit method that uses a bendable end tab to clamp under the countertop edge, enabling secure attachment without drilling into stone surfaces. This approach protects expensive countertops from penetration but requires careful bending and sufficient cabinet framing to transfer load. Pre-installation attachment before countertop placement remains the most rigid option when feasible.
How does a mounting bracket affect dishwasher noise levels?
A secure mounting bracket reduces structure-borne vibration by constraining chassis motion at the cabinet interface, which can lower perceived noise transmitted through cabinetry and countertops. However, the bracket does not alter the dishwasher’s internal noise sources such as pumps or motors. For meaningful noise reduction, a combination of a well-mounted chassis and a dishwasher with low published decibel ratings and internal insulation is recommended.
What maintenance is needed after installing this bracket kit?
Periodic visual inspection of fasteners and mounting points is recommended to detect loosening or corrosion. Tighten screws to manufacturer-recommended torque values and check for any signs of water exposure that could compromise finishes. If the appliance is frequently pulled for service, retain the original hardware and inspect the bracket tabs for deformation after reinstallation.
Does the bracket improve dishwasher cleaning performance?
Indirectly. Proper alignment and secure mounting preserve spray-arm geometry, door seal compression, and drainage slope—factors that help maintain consistent spray coverage and prevent pooling. While the bracket itself does not change wash cycles or detergent action, it supports the mechanical conditions under which the dishwasher achieves its rated cleaning performance.
Is this mounting kit corrosion-resistant for under-sink environments?
The bracket is made from 22-gauge galvanized steel with a powder-coated finish, which provides baseline corrosion resistance suitable for typical under-counter conditions. Galvanization offers sacrificial protection against rust, and the powder coat adds surface durability. Long-term exposure to persistent leaks or harsh chemicals can still compromise finishes, so prompt leak repair and routine inspection are advised.
What should be avoided when using this bracket for retrofit installs?
Avoid over-bending the tab or applying excessive torque to fasteners, as this can weaken the bracket or reduce clamping effectiveness. Ensure cabinet framing is structurally sound before relying on a retrofit clamp to carry loads. Do not use this kit for 18-inch narrow dishwashers or models with unique mounting geometries that do not match the listed OEM part numbers.
